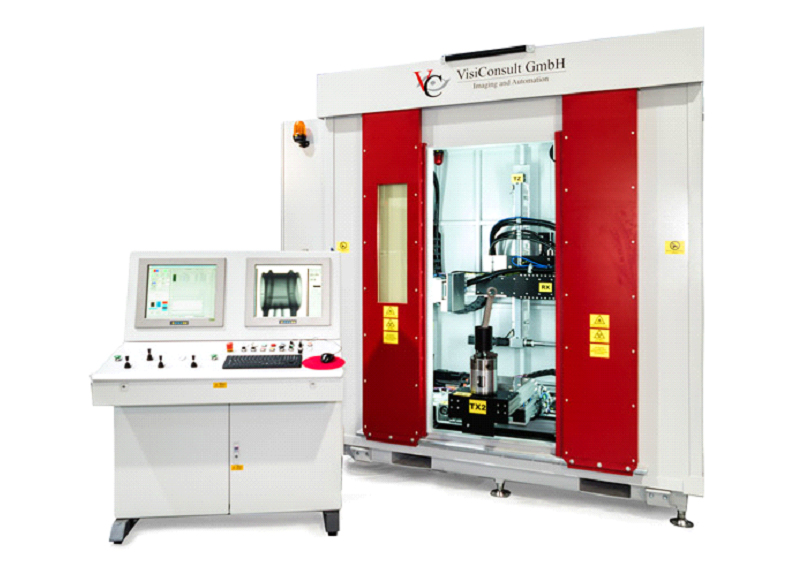

Visionsult XRH222 CT Scanner

The XRH222 is one of the most versatile computed tomography cabinets on the market and has dozens of successful installations. It can be used for all kinds of applications like real-time Digital Radioscopy (DR), fully automated ADR and even 3D-CT analysis. The system has two separate manipulators: The 4 Axis part manipulator and a C-Arm can be controlled independently. Due to the ultra-precise motors and the Xplus Handle all functionalities of the cabinet and image enhancement software can be easily automated by the operator without any programming knowledge.

The standard XRH222 supports 160kV, 225kV and micro-focus. Alternatively 320kV and 450kV are also available for thicker materials. In case of exceptionally big parts the XL version can even accommodate heights of up to 3250mm. To ease the part handling of such huge specimens VisiConsult developed the XRH222 TL, where parts can be lowered by crane. The S version can be chosen in case of space constraints.

Features:
* Xplus: Clear digital radiography images including live enhancement
* Native Computed Tomography (⦁ CT) functionality
* Automated 24/7 inspection through Automatic Defect Recognition (⦁ ADR) and programmable CNC axes
* Suitable for heavier and bigger parts in the XL version
* Robust industrial design for a sustainable product with high reliability
* Proven through many worldwide installations
